Compare Options
Creating Options
When options have been published, it is possible to view a comparison between them.

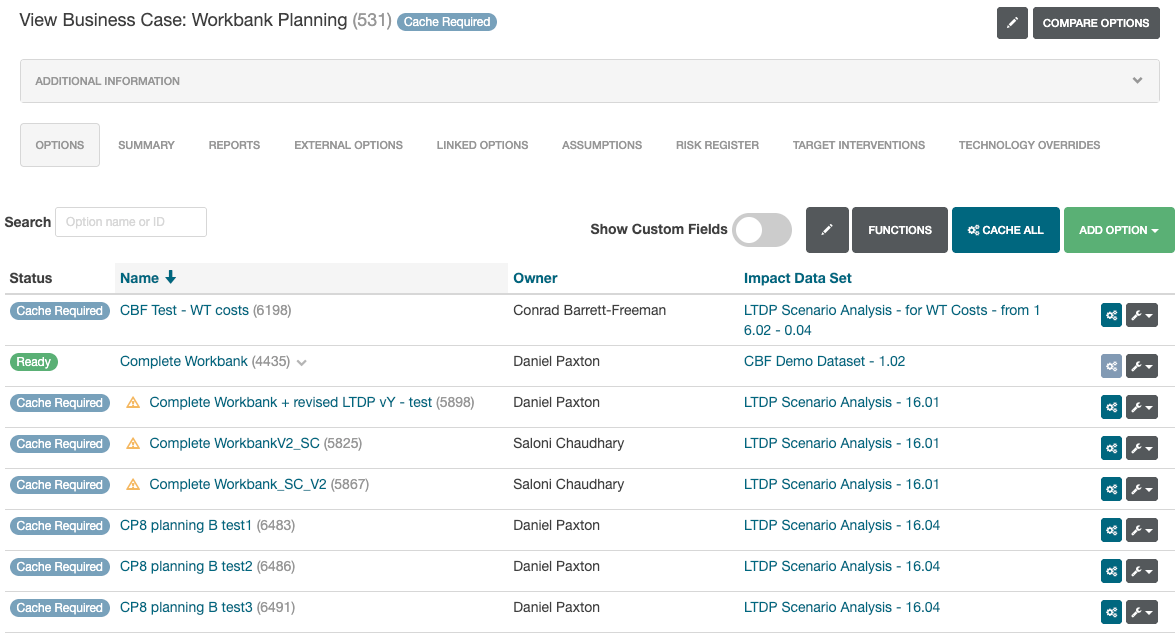

From the business case selection, select Compare Options.

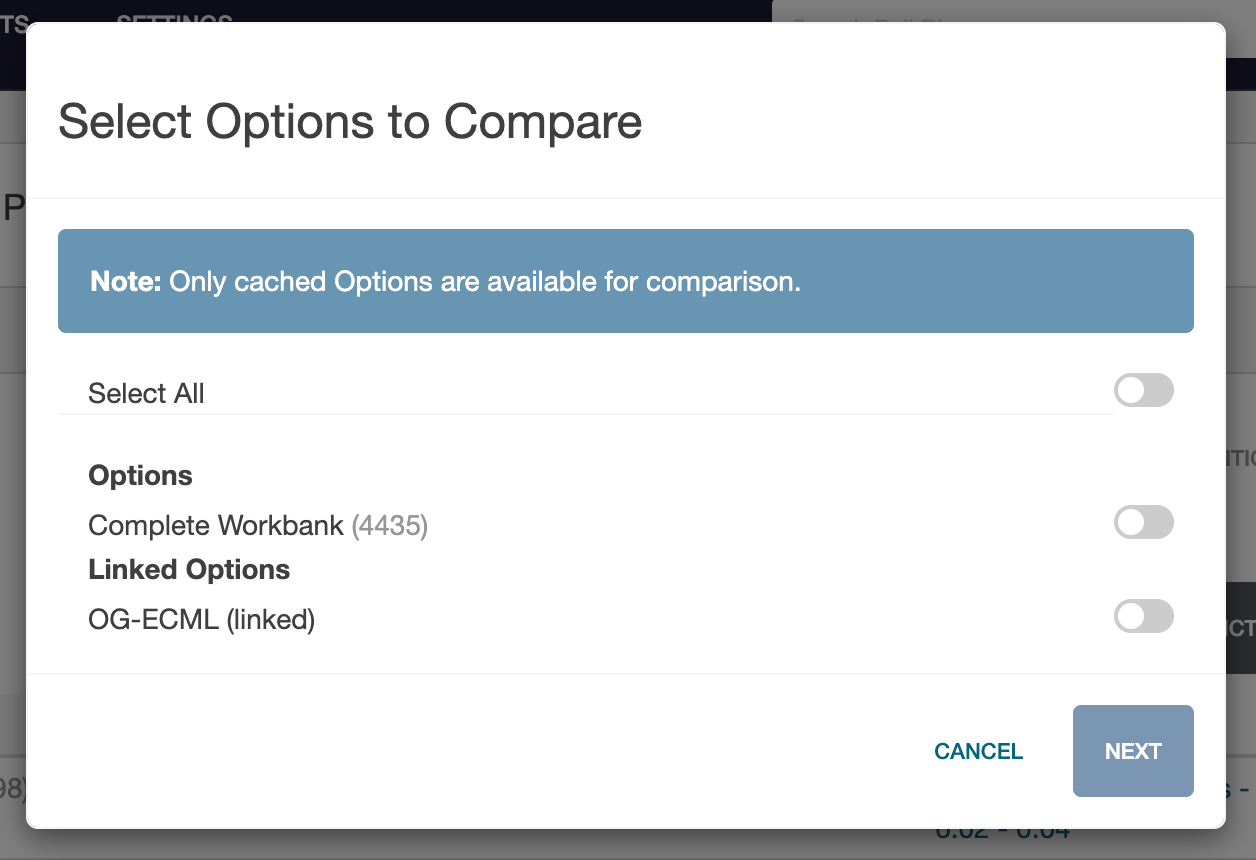

A modal will be displayed allowing the user to toggle which options to use in the comparison.
Select the options to be compared to create the comparison, then click Next.

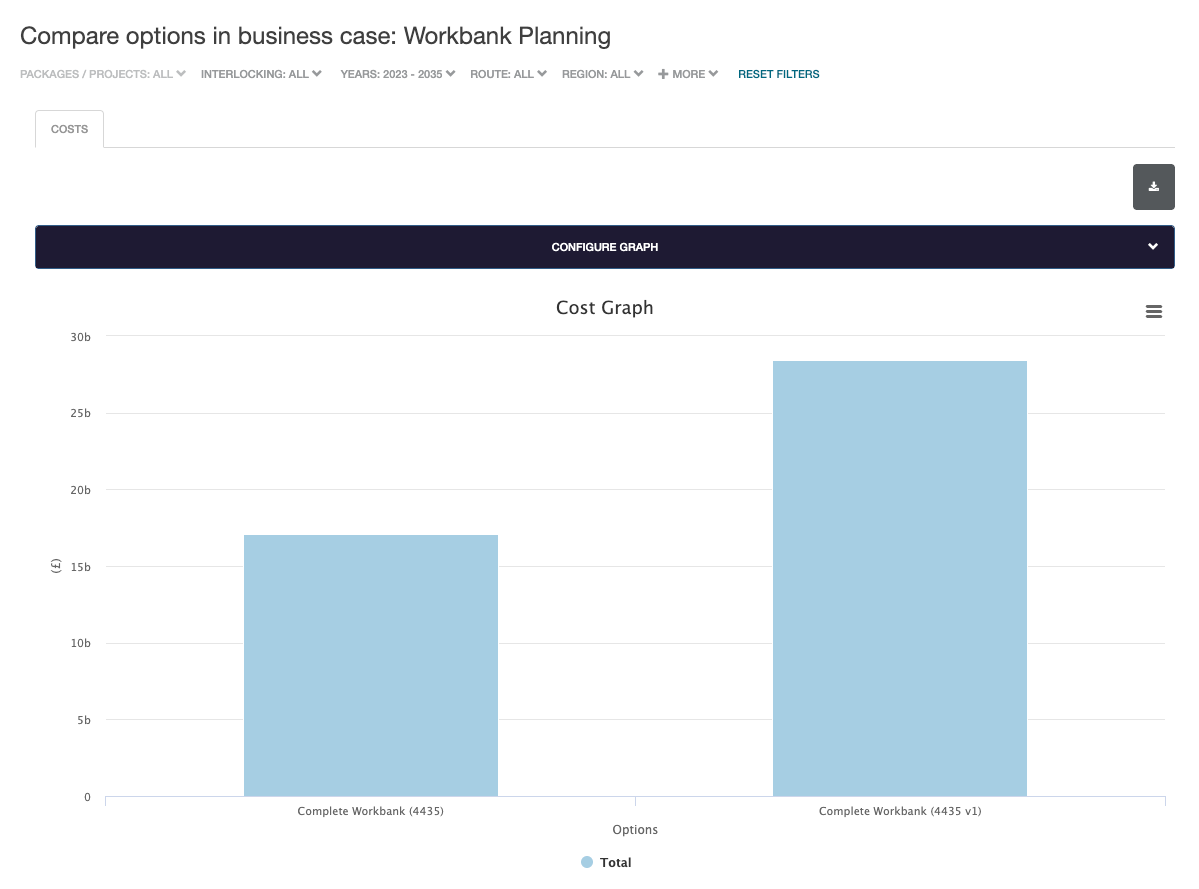

The comparison will then be displayed.
Filters
Filters can be set at the top of the page to change the information displayed.
Filters can be set on:
- Route
- Region
- Interlocking
- Work Type
- Years
Once a filter has been selected, click Apply to apply the filter to the data displayed.
